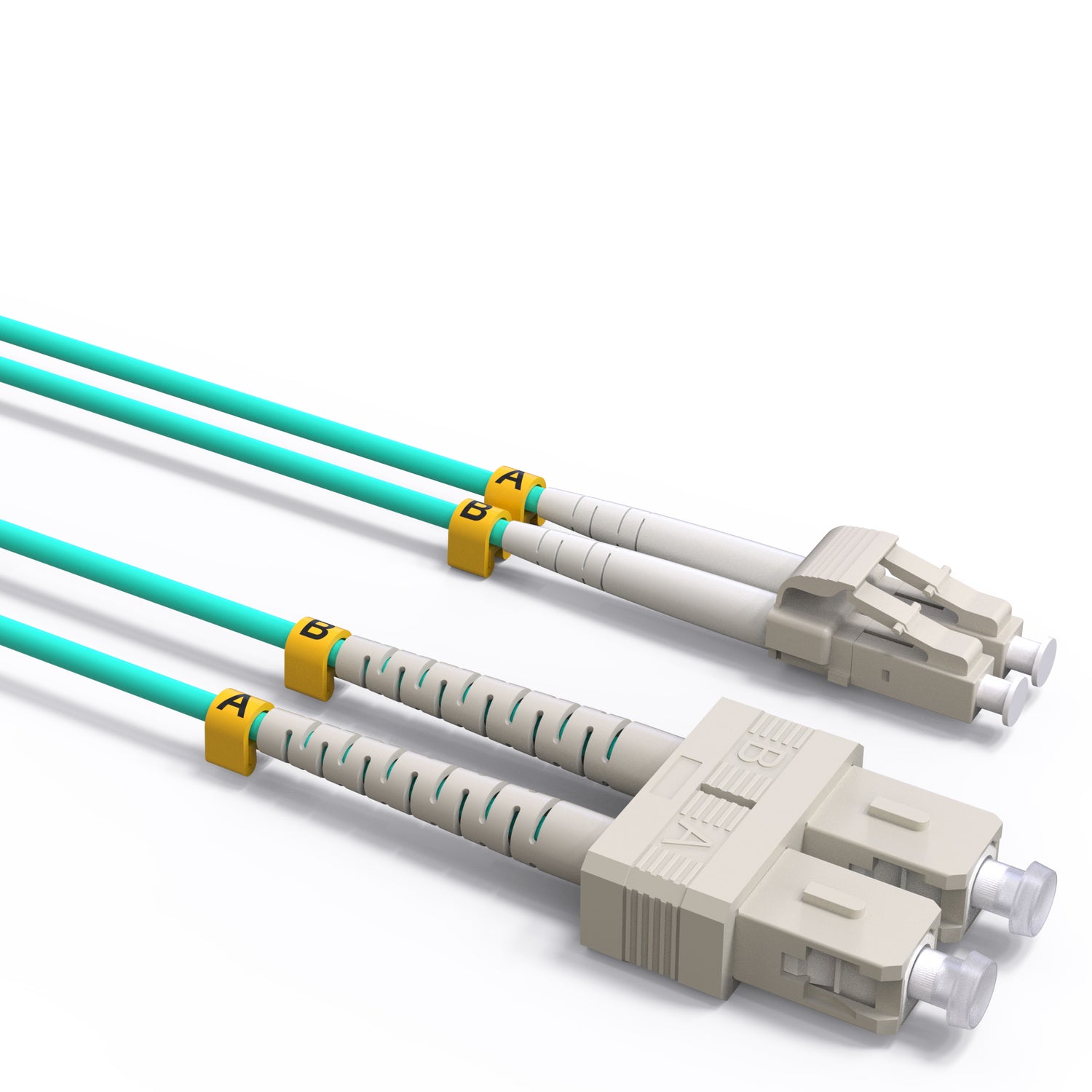

VANDESAIL OM3 LC to SC Fiber Patch,Multi-Mode OM3 SC-LC Patch Cords 10 Gigabit Duplex MM Fiber Jumper 50/125µm

$7.49 USD
尺寸
样式
材料

Buyer Protection

  • ✓ 30 Days Free Refund & Return

    30 Days Free Refund & Return

    We provide free refund & return within 30 days and the customer will be responsible for the return fee.

    Please contact customer service to confirm before returning. Customer Service Email: info@flypro.com. The product must be guaranteed to return in its original status.

    Once the return is received, the order amount will be refunded to your payment account.
  • ✓ Lifetime Technical Support

    Lifetime Technical Support

    If you place an order on the FLYPRO.com website, we will provide permanent technical support. If you need help, please feel free to contact us.

    The service hours are from 9:00 to 18:00, Monday to Friday(GMT+8)

    For information on technical support products, please send them to info@flypro.com.

Description

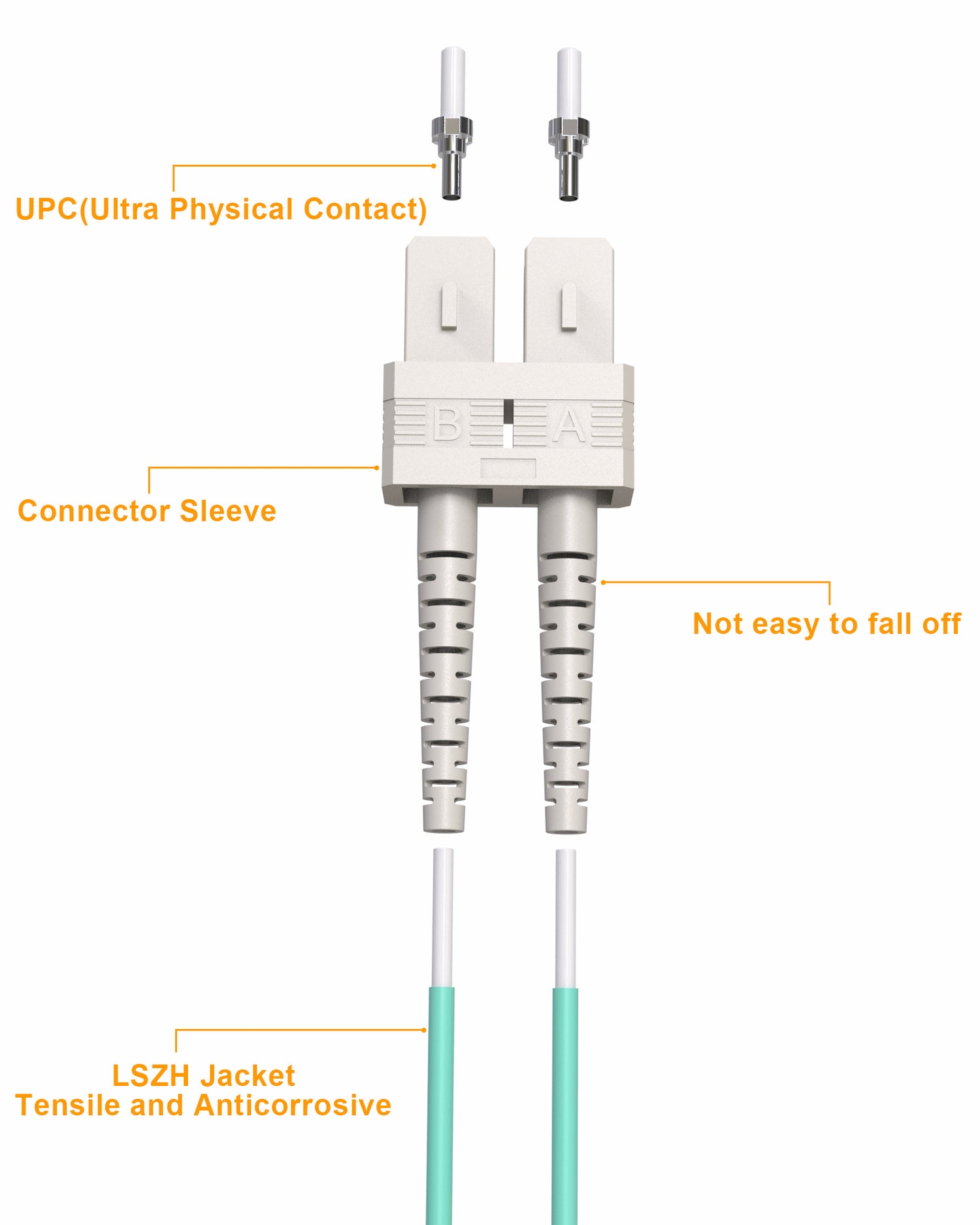

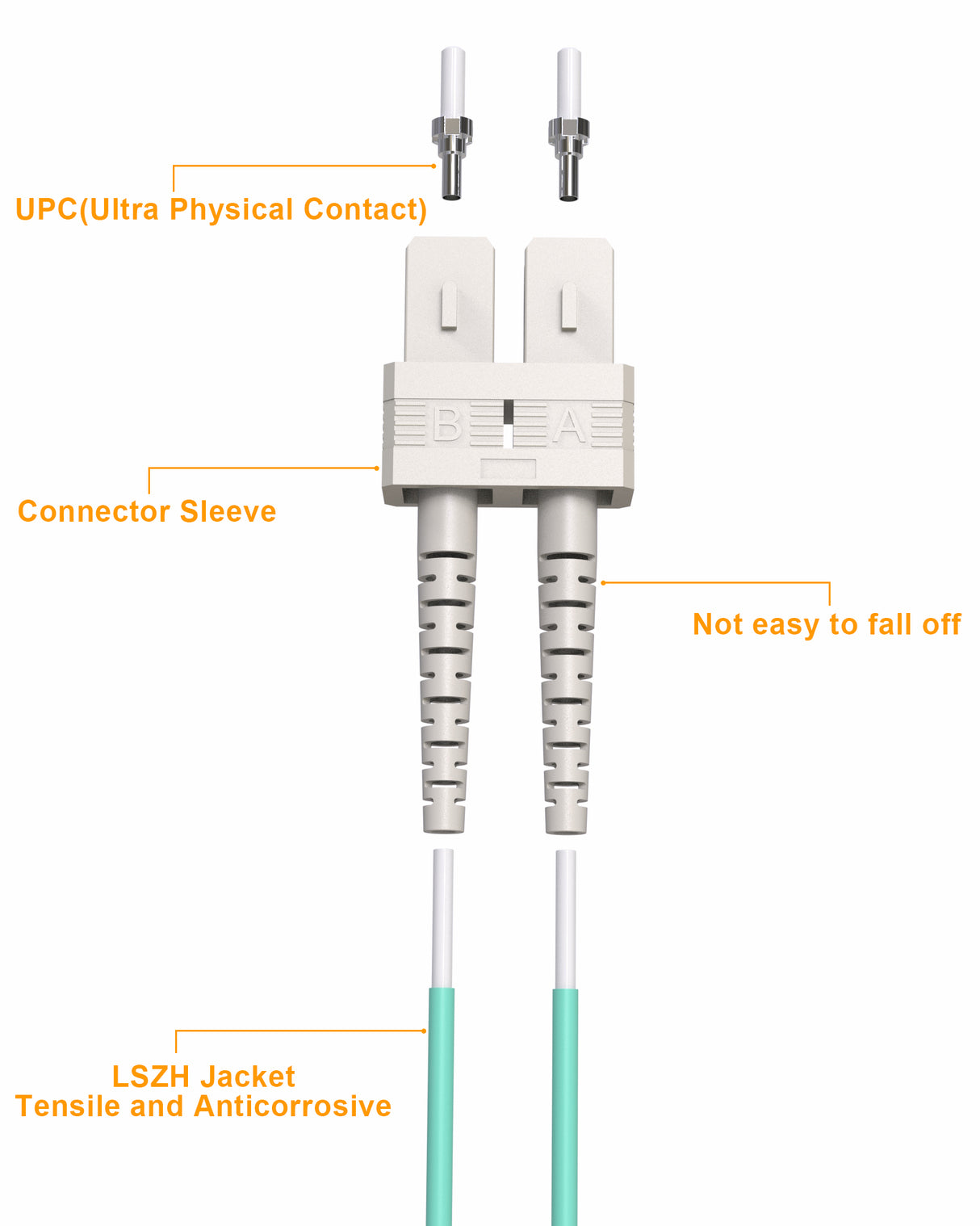

Heightened Accuracy Low-Loss: With an Ultra Physical Contact (UPC) polished fiber core,our multimode patch cable ensures minimal signal loss and exceptional data transmission accuracy,guaranteeing a stable and dependable connection for critical applications with enduring performance, the preferred choice for demanding applications, including data centers, telecommunications, and high-speed networks.

Multi-mode Fiber Patch: Our OM3 fiber patch cable offers outstanding bandwidth and data transmission capabilities, supporting speeds of 10 Gbps and beyond while adhering to industry standards. Its duplex design enhances versatility and data transmission efficiency, ensuring a reliable solution to meet your network requirements.

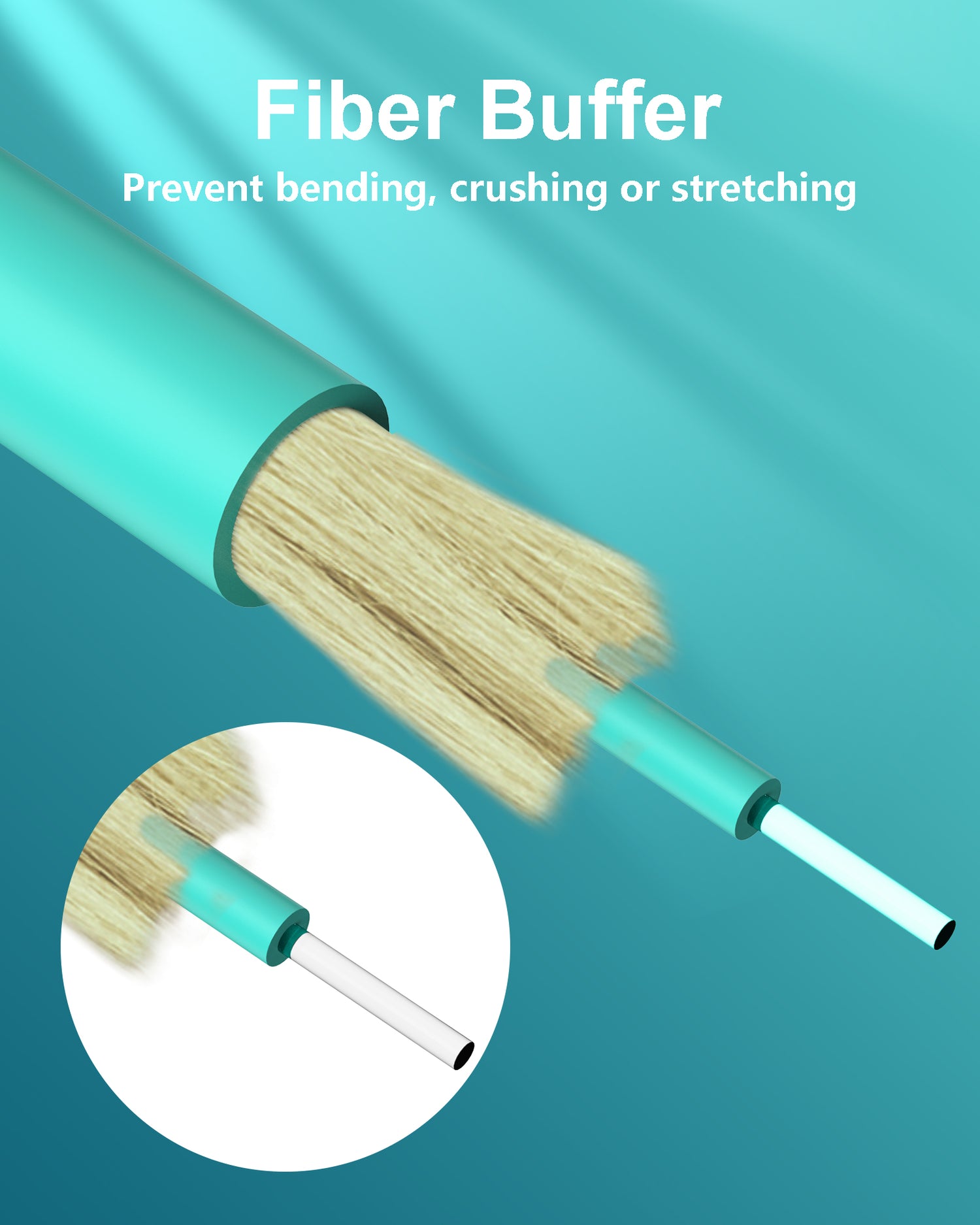

Strong Bending Strength: Fiber optic patch cables exhibit outstanding bend resistance, enabling continuous high-quality signal transmission even under tight radius bends. Its performance remains unaffected during prolonged bending,suitable for confined spaces and complex cabling environments, like data centers and equipment rooms, ensuring efficient routing and reliable network connections.

LSZH Jacket: Our fiber patch cord, featuring an LSZH (Low Smoke Zero Halogen) jacket material, offers fire resistance and minimal smoke and toxic fume production in case of a fire, and reliably operates within a temperature range of -20ºC to +70ºC. This makes it a safe and adaptable choice for indoor installations.

Wide Range of Applications: Our OM3 fiber optic patch cable multimode is versatile and suitable for various applications and devices, including LAN,WAN,Communication Networks,Fiber Modules and Converters,Data Center Interconnection,Servers and Storage Devices,and more.






Product Specifications:

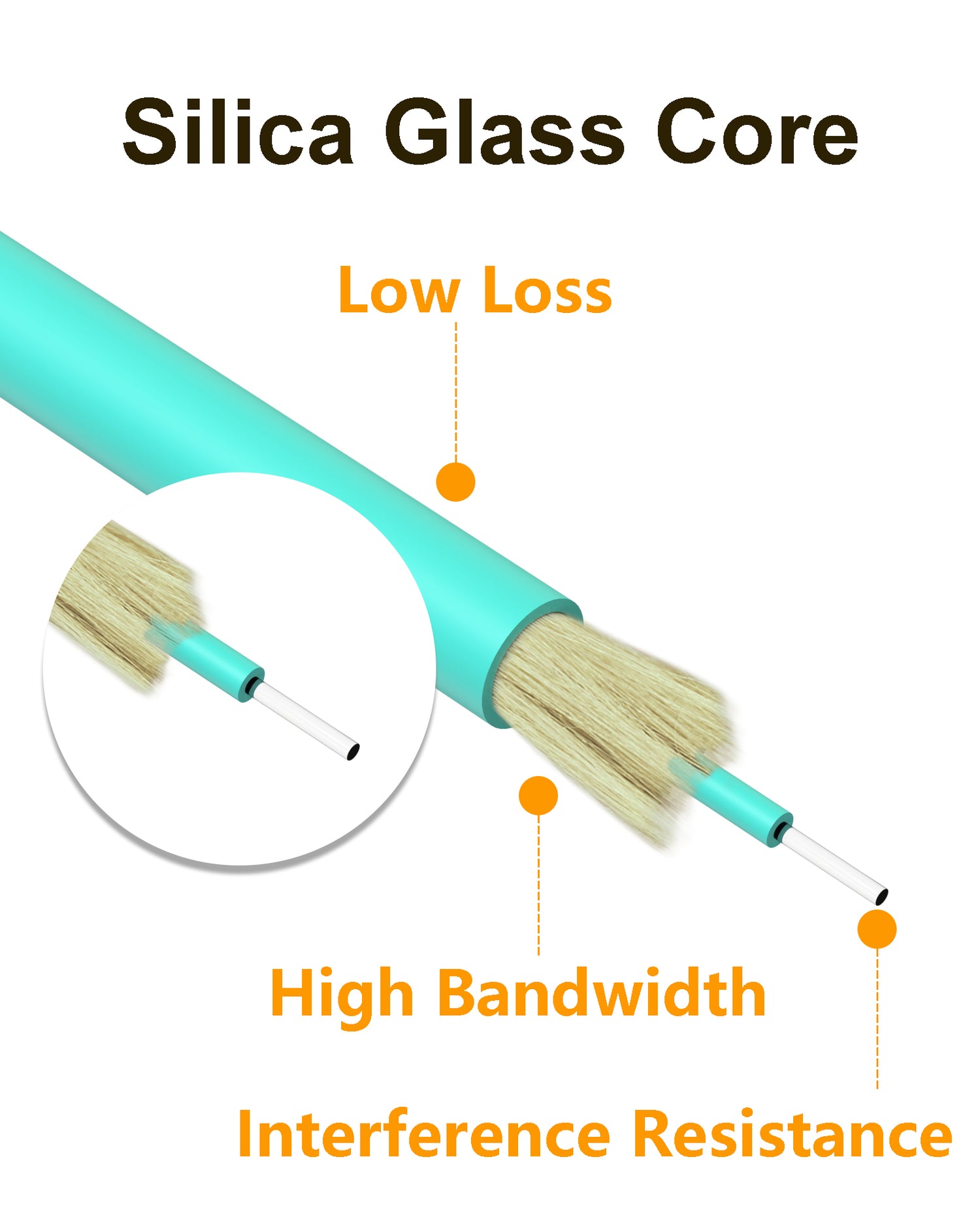

Fiber Core: High Rated 50/125um Fiber and Cladding
Insertion Loss: ≤0.3dB
Return Loss: ≥30dB
Wavelengths: 850nm and 1300nm
Attenuation at 850nm: 3.0 dB/km
Attenuation at 1300nm : 1.0 dB/km
Operating Temperature: -20~70°C
Cable Diameter: 2.0mm

Reviews (0)

Payment & Security

Payment methods

  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

The 50/125μm OM3 multimode bend-insensitive fiber optic cable exhibits reduced attenuation even when subjected to bending or twisting, contrasting with conventional optical fiber cables. This feature enhances the efficiency of fiber optic cable installation and maintenance processes. Moreover, it facilitates space-saving attributes, particularly beneficial for high-density cabling environments like data centers, enterprise networks, telecom rooms, server farms, cloud storage networks, and any other locations requiring fiber patch cables.

This 50/125 OM3 multimode fiber optic cable serves as an optimal solution for establishing connections with 10G SR, 10G LRM, SFP+ transceivers, and similar equipment for 10G/40G/100G Ethernet connections. It represents the preferred fiber specification for enabling seamless 10G Ethernet connections.
Connector TypeLC to SCPolish TypeUPC to UPC
Fiber CountDuplex / SingleFiber ModeOM3 50/125μm
Wavelength850/1300nm10G Ethernet Distance300m at 850nm
Insertion Loss≤0.3dBReturn Loss≥20dB
Fiber GradeBend InsensitiveMinimum Bend Radius7.5mm
Attenuation at 850nm3.0 dB/kmAttenuation at 1300nm1.0 dB/km
Cable JacketPVCCable Diameter2.0mm
PolarityA(Tx) to B(Rx)Operating Temperature-20~80°C

Quality Assurance

Vandesail thrives on the cornerstone of impeccable quality, essential for its sustenance and advancement. Our operational cadre comprises seasoned professionals with extensive expertise spanning numerous years in the optical communication sector. Collaborating with top-tier manufacturers in the industry, many boasting OEM accreditation from leading system equipment manufacturers, ensures our commitment to excellence remains unwavering.

Quality Certification

Our meticulous approach to product quality encompasses stringent manufacturer qualification, rigorous quality control procedures, and advanced production technologies, all adhering to certification and safety standards. Currently, our product portfolio aligns seamlessly with industry benchmarks and boasts prominent quality certifications like ISO 9001, CE, RoHS, FCC, among others.
