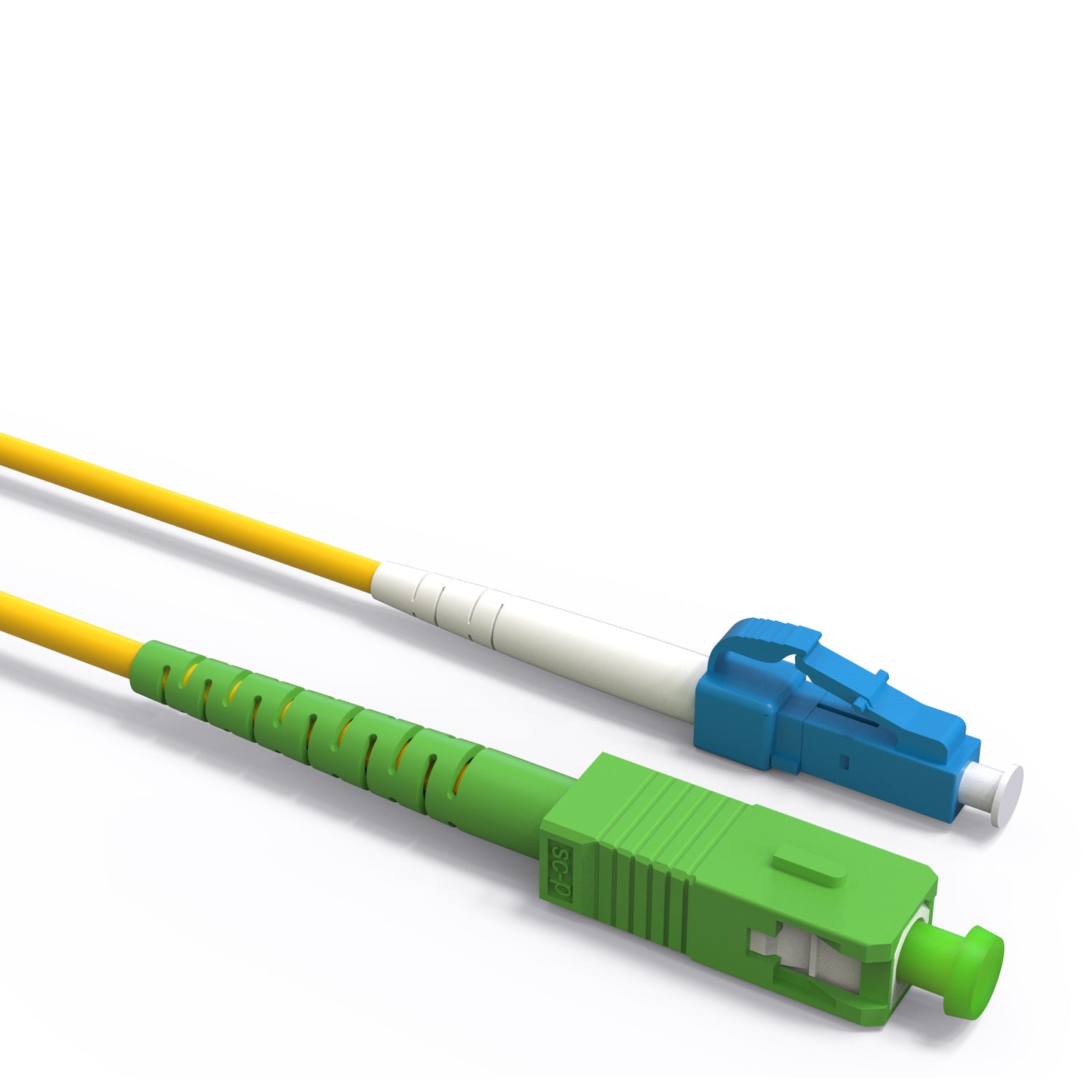

VANDESAIL OS2 LC-UPC to SC-APC Fiber Patch Cable Single Mode Fiber

Fiber  LC - SC/APC single- mode optical fiber fiber with fiber diameter of 2.0mm and LSZH. It is very durable for indoor use and meets all UL, CUL, IEC and ROHS standards. This optical fiber patch cord is very suitable for home and office. It is used to connect 1g/ 10g/ 40g/ 100g Ethernet cables.

This LC - SC/APC fiber patch cord is used in Gigabit Ethernet, fibre channel, LAN, data center, building installation, Wan, commercial and other high-density applications. We have been verified by the authority of the industry that the single-mode optical fiber jumper completely meets the needs of optical fiber professionals.

Fiber information: LC to SC/APC Fiber Patch Cable OS2,Cable single mode is 9 / 125 μ m. 10GBASE-L (1310 nm), 10GBASE-E (1550 nm). Sheath material: LSZH fiber Color: yellow. The outer diameter is 2.0mm

Our optical fiber jumper has high-quality materials: the optical fiber jumper is made of environmentally friendly LSZH material. The jumper is soft and has a strong texture. It will not fade or break, nor will it deform and withstand high temperatures. Ceramic connector, with low signal loss, can be used more safely.

Each cable is produced after strict testing to meet the needs of modern people. The quality and insertion loss are strictly guaranteed. It is compatible with all standard optical fiber equipment and connectors. It can be used in all kinds of optical fiber LAN, optical fiber communication system, cable TV and other communication equipment. Very trustworthy.

Connector Type: LC-UPC to SC-APC
Fiber Mode: OS2 9/125µm single mode
Fiber Count: Simplex
Cable Diameter: 2.0mm
Wavelength: 1310/1550nm
Fiber Grade: G.652.D
Min. Bend Radius (Fiber Core): 16mm
Min. Bend Radius (Fiber Cable): 20D/10D (Dynamic/Static)
Insertion Loss: ≤ 0.3dB
Return Loss: ≥ 50dB
Operating Temperature: -25°C to 70°C
Storage Temperature: -25°C to 70°C
