VANDESAIL OS2 SC to LC Armored Single Mode Fiber Patch Cables, Options 1m~153m, OS2 Fiber LC to SC Optic Cable 10G SMF LSZH Duplex 9/125μm OD 3.0mm
VANDESAIL OS2 SC to LC Armored Single Mode Fiber Patch Cables, Options 1m~153m, OS2 Fiber LC to SC Optic Cable 10G SMF LSZH Duplex 9/125μm OD 3.0mm - 3FT / 1PACK / OS2 SC-LC Armored is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Buyer Protection
Description
Description
✔[OS2 SC-LC Single Mode Duplex Fiber Patch Cable 3m/9.8ft] RamboCables Fiber Optic Patch Cords SC to LC Single Mode Duplex constructed with SC/UPC to LC/UPC connector, 9/125μm high rated fiber cladding, 1310/1550nm wavelength, environmentally friendly LSZH Jacket and 2.0mm Cable Diameter.
✔[Wide Application] This OS2 SC-LC Single Mode Duplex Fiber Patch Cord is ideal for connecting 10G SR, 40G BIDI SR, QSFP+, SFP+ transceivers etc, suitable for 1G/10G/40G/100G/400G Ethernet connections, saves more space for your high density cabling in data centers, cloud storage networks, server farms, computer room wiring, community network construction and any places fiber optic cables are necessary.
✔[Max Transmission Distance] This OS2 Single Mode Optic Fiber Cable can transmit data for up to 10km at 1310nm, or up to 40km at 1550nm. Bandwidth at 1310nm-1550nm 0.36 dB/km-0.22 dB/km, can operate under temperature -20~70°C.
✔[Industry Standard] OS2 SC-LC Fiber Patch Cord is constructed with LSZH environmentally friendly Jacket. Optimum IL and RL of the Zirconia Ceramic Ferrule ensures stable signal transmission(Accordance with EIA/TIA 604-2, 100% inspected), protecting your network safety. 15mm Minimum Bend Radius improves duct utilization, enabling smaller enclosures.

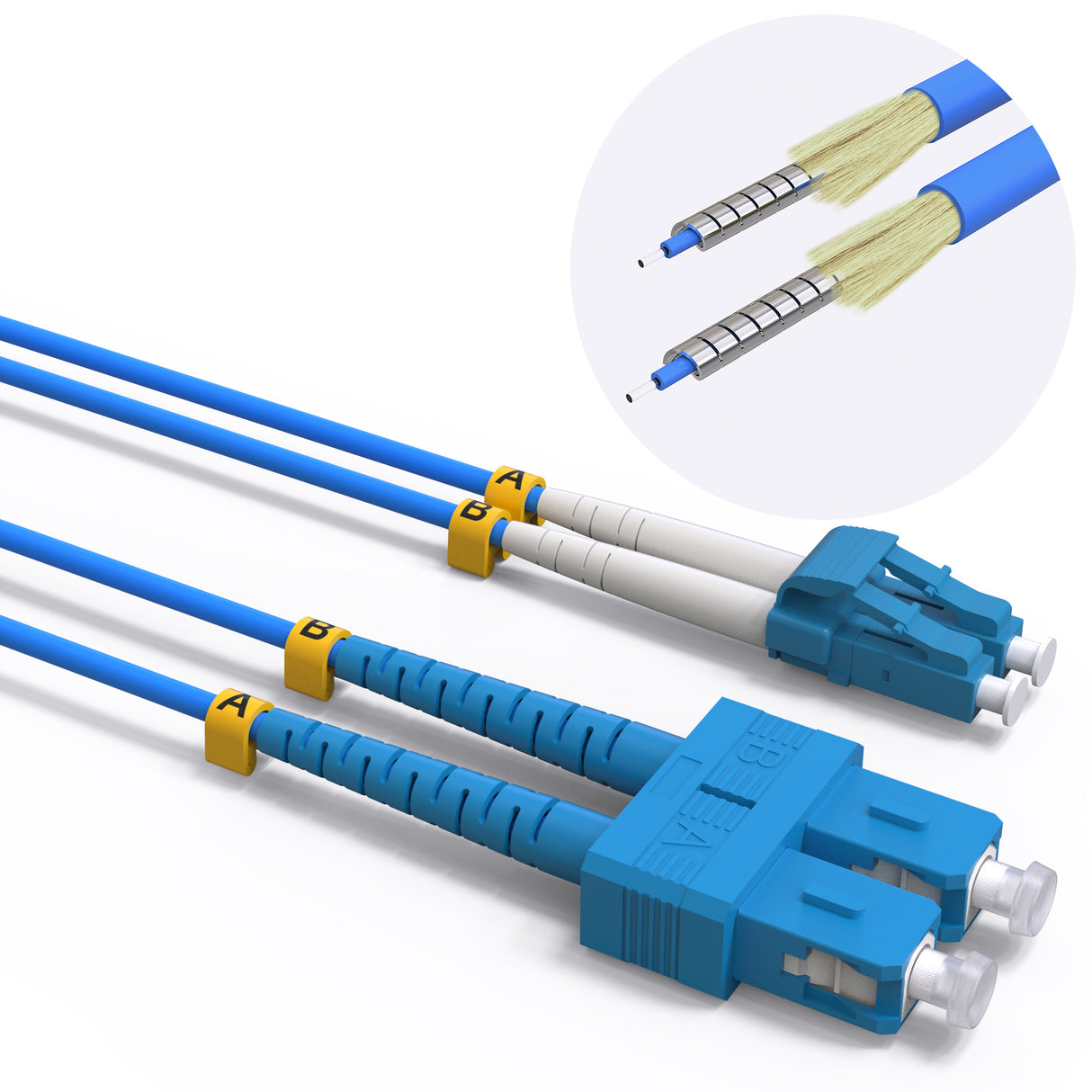

Durable Armored Protection: This cable features a spiral stainless-steel structure that shields the glass fiber core from damage caused by rodents and external factors. The stainless-steel armor not only safeguards the fiber but also minimizes the risk of environmental and physical damage.
OS2 Single Mode Fiber can achieve transmission rates from 1 to 10 GbE at various transmission distances. It's ideal for connecting 1G/10G/40G/100G/400G Ethernet connections. It can transport data for up to 10km at 1310nm, or up to 40km at 1550nm.
Product Specifications:
Wavelengths: 1310nm and 1550nm
Insertion Loss: ≤0.3dB
Return Loss: ≥50dB
Attenuation at 1310 nm:0.36 dB/km
Attenuation at 1550 nm:0.22 dB/km
Cable Diameter: 2.0mm
Operating Temperature: -20~70°C
Fiber Core: High Rated 9/125μm Fiber and Cladding
